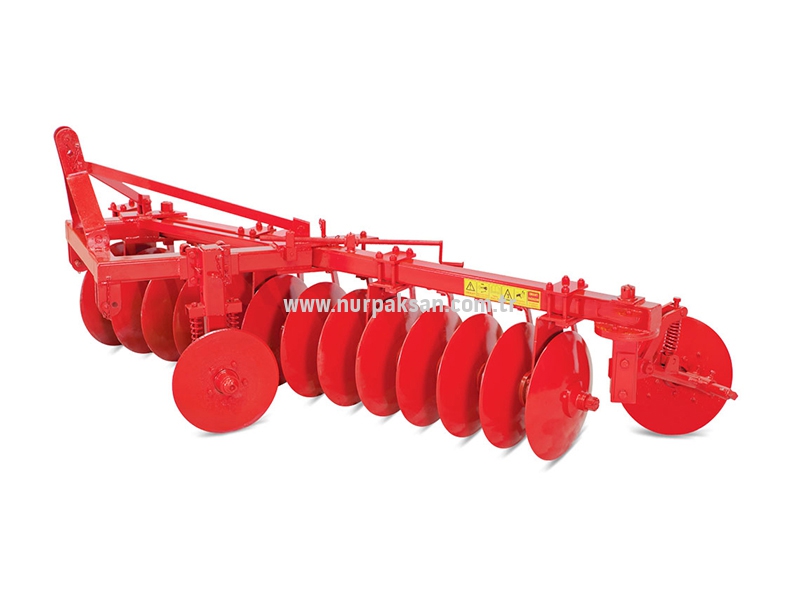

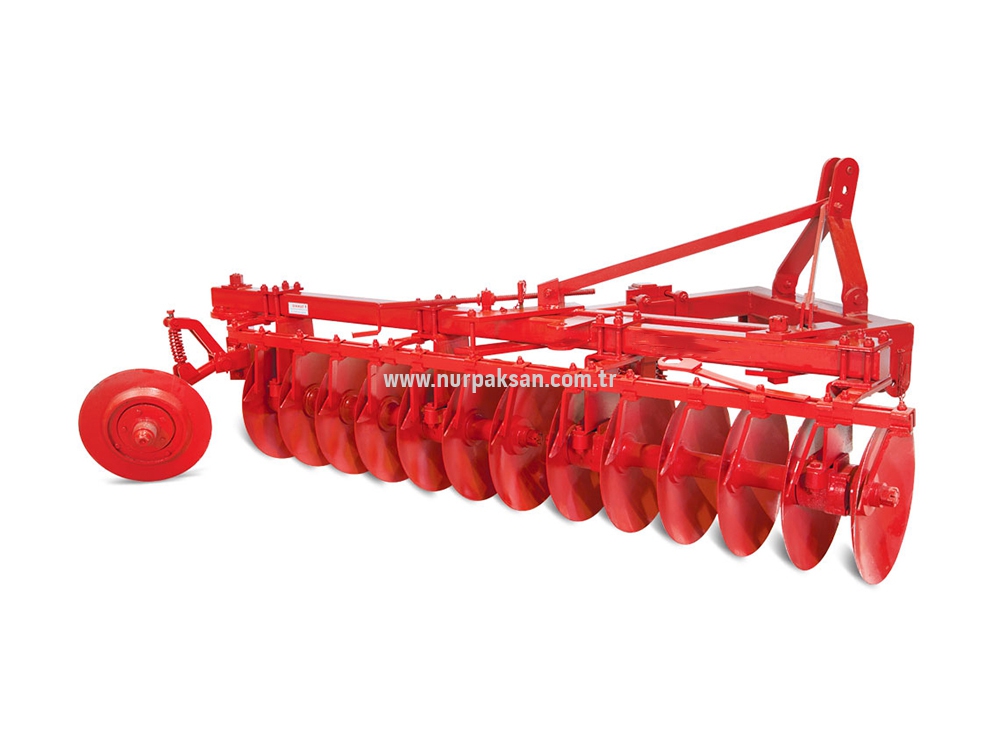

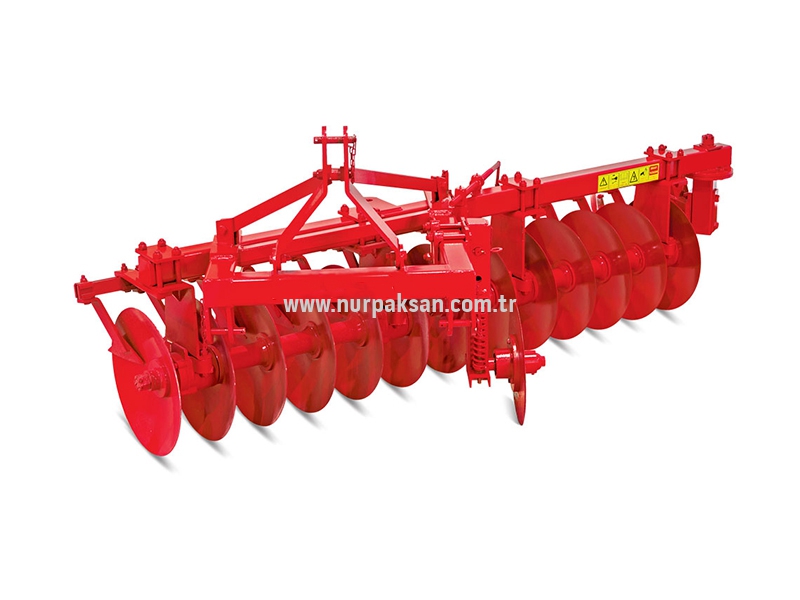

MOUNTED ONE WAY DISC HARROW WITH DOUBLE BALANCE WHELL
Steel Disc Reels
Scraper cleaning system
Double balance wheel
Double felt and ball bearings

One way is a secondary class soil cultivation machine. They are such tools used after the pulley to prepare a field which was processed with a pulley for planting. To make the field surface eligible for planting by breaking the clod created by the pulley is called duplexing.

Mounted one way disc harrow with double balance wheel a soil cultivation machine used for cultivation such as duplexing and triplication on fallowed field for one year after plowing; breaking weeds in the vineyard, garden and field and soil aeration.

*Purpose of use of the one way is;

*To prepare seed bed by breaking the soil sufficiently.

*To kill weeds in fallow agricultural method and to protect humidity accumulation by preventing the vaporization from the soil.

*To break the plant residues on the soil surface and provide to mix the organic residues on the upper layer with the soil.

*To break the duff layer and to accelerate germination by creating a better tempering status through compressing the soil particularly.

  • Materials used in one way are inspected completely before manufacturing step and prepared for manufacturing after passing along the test step and quality materials are used.
  • Thanks to its design, the adjustments are simple and it is a very easy to operate machine.
  • As well as boron steels with a diameter of 560, European and domestic discs with diameters of 610 mm may be installed on our machines.
  • It may be used conveniently without damaging the tree roots between vineyard and garden spaces thanks to the slidable upper chassis.

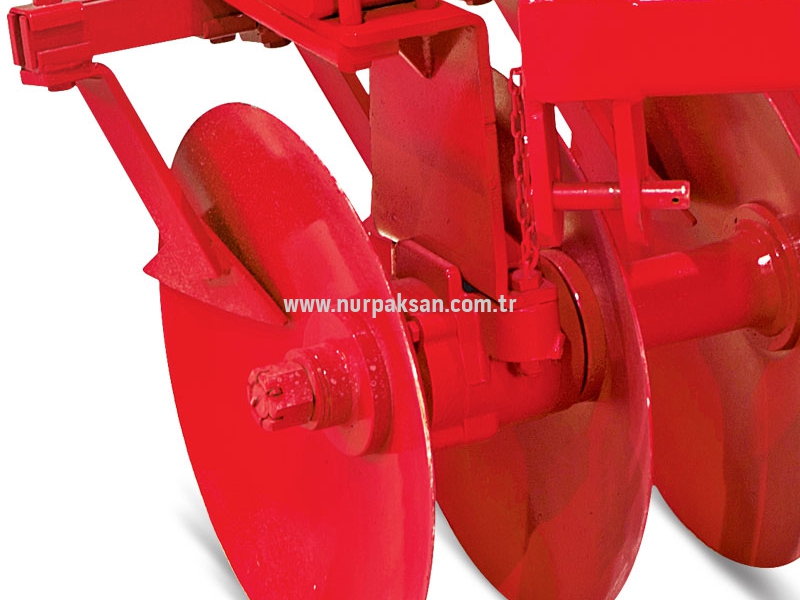

  • There are scrapers as sharp as the disc to clean the stuck soil on each disc during the operation.
  • There is a discharge lubricator to visualize the discharge of the oil which is filled in the bearing together with the double mat and double roller in our bearings.
  • The double balance wheel system which provides balance of the tractors are present on our machines as a standard feature. .
  • Curve adjusting assembly are installed onto the machines as a standard.
  • Pulleys are manufactured from the steel and their breakage was prevented because of the stone or different reasons in the field.

Discs may be manufactured with sizes of 560 and 610 mm and plane and notched
